Lightech Triumph Rearsets
Track System Technology

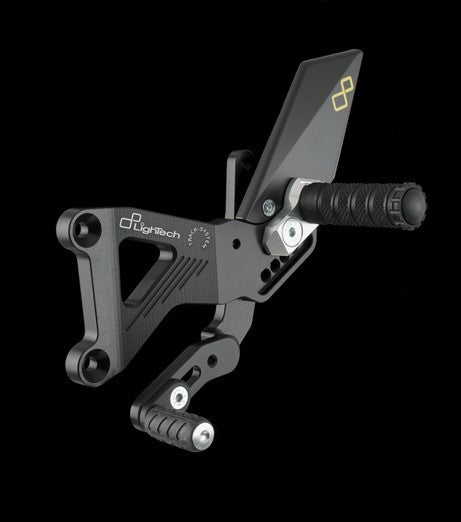

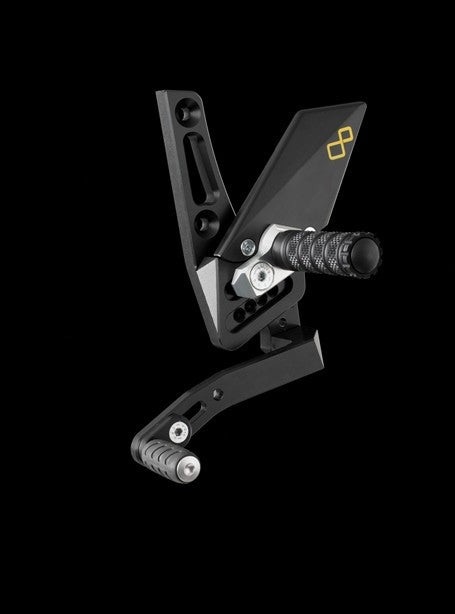

Lightech rear sets adopt our unique design referred to as the ‘TrackSystem’: with this system it is possible to adjust the position of the footrest, quickly and accurately. The adjustment is made by sliding the footrest support on two tracks machined at different levels, to a maximum of 8 positions, thanks to the holes present on the support. It is possible to adjust also the toe peg position of the shift and brake lever with an easy sliding design, to meet the needs of the rider.
The main support of the rear set is engineered from billet Aluminum 7075, thus guaranteeing exceptional rigidity and ensuring safety and performance for all riding conditions. All plates, levers and supports are machined by LighTech’s state of the art CNC facility. The levers work on high quality bearings that guarantee perfect and excellent resistance mechanisms even during the most extreme demands on the track and road..The LighTech ‘Track System’ rear sets are manufactured with footrest supports anodized in silver with a lightweight but strong magnesium heel guard incorporating the LighTech logo. LighTechrear sets are not only high in technical features but are unique in design and highly attractive. Our rear sets can be ordered with standard or reverse shifting, with fixed or folding footrest and with additional options for folding toe pegs or carbon heel guards. LighTech provides all spare parts for restoring the rearsets in case of a crash or loss of any component.
For all Track-System rear sets, LighTech offers the “R” version option This special version is the state of the art in adjustable rear sets technology:
- Carbon red-pattern heel guards with special “R” red logo
- Folding footpegs and toepegs
- Top-quality SKF specials bearings
- Titanium grade-5 main screws
- Red footpeg supports LighTech “R” version rear sets can be ordered with standard or reverse shifting, LighTech provides all spare parts for restoring the rear sets in case of a fall or loss of any component.
LighTech “R” version rear sets can be ordered with standard or reverse shifting, LighTech provides all spare parts for restoring the rear sets in case of a fall or loss of any component.
Note: The rear switch-stop is not supplied with rearsets.
