Dual Fitting Rear Hand Brake Kit
Our kit contains everything you need to gain control of the rear brake with a left handed lever while maintaining all the function of your foot pedal and rear caliper. Unlike Thumb-operated rear brake systems, that typically offer about 25% braking force, our system is able to deliver approx. 90% of pedal-operated braking force.
We use a high quality Brembo master cylinder (not an off-brand, upside-down-mounted, master cylinder off who knows what bike). This means you are already starting with the best - no 'upgrading' required.

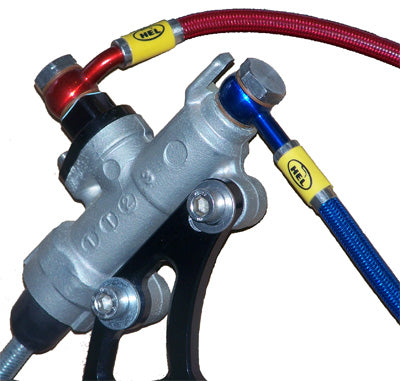

Using a billet fitting inserted into the stock foot master cylinder means you retain all the action of the foot pedal. For certain models you can choose below from a traditional Press-fit type fitting or a Screw-type fitting that threads into the master cylinder.
You also get the best braided brake lines made - HEL.
Your HEL line is made in the USA with a Teflon inner hose wrapped in braided stainless steel, covered with a durable PVC coating, and permanently swaged stainless steel fittings. All kits come with Stainless Steel banjo bolts and new crush washers. All HEL lines come with a transferable Lifetime Warranty. If you don't get a Lifetime Warranty on a brake line you shouldn't purchase it.
All you'll need is brake fluid.
Quad, Dirtbike, and Supermoto applications also avaialble.

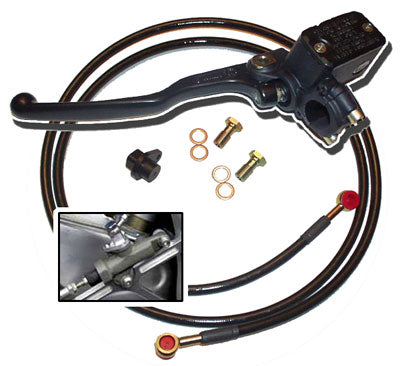

Basic Kit Includes:
Brembo Left Handed Master Cylinder/Reservoir 10.4670.14
Dual Fitting (*For adapting to your foot master cylinder)
56" Stainless Steel Brake Line (*Color of your choice) 48" Brake Line for Honda Grom and Z125
Stainless Steel Banjo Bolts
Copper Crush Washers
*This is a true left handed brake master cylinder with enclosed brake reservoir- not one that is turned upside down. This system does not require any additional brake caliper be welded on or otherwise added.
*2003-2005 R6 and 2004-2006 R1 and FZ models require a stock foot master cylinder from an earlier model R6/R1.
*2007 and newer model R1 require a bracket/relocation tab to be fabricated for proper fit.
*FZ07 Models will require a bracket/relocation tab to be fabricated for proper fit.
65" & 80" line upgrade is for riders that wish to upgrade to a full system in the future
MASTER CYLINDER UPGRADE INCLUDES TYGON HOSE AND RESERVOIR.
SOME MODIFICATION MAY BE REQUIRED DEPENDING ON MODEL
THE BREMBO 13MM MASTER CYLINDER DOES REQUIRE YOU TO MAKE ROOM ON YOUR BARS. SOMETIMES THE TURN SIGNAL SWITCH MUST BE RELOCATED.
