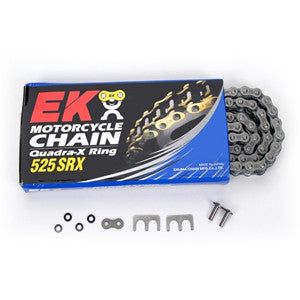

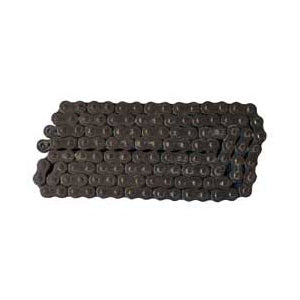

EK 525 SRX Steel X-Ring Chain

EK Chains

$112.00 USD

Share:

Superior quality X-ring chain - Up to 650cc Streetbikes

Will custom cut to any length.

EK SRX series chains are an excellent value for any
street machine up to 650cc. They feature lightening holes, reduced friction, and Quadra-X Rings which increases chain life from 1 1/2 to 2 times longer than a standard O-Ring chain.

SRX 525 Also available in GOLD!


Specifications-

525 SRX

Pitch- 5/8in. or 15.875mm

Width- 5/16in. or 7.94mm

Pin Size-
Dia.- 5.38mm
Length- 23.00mm

Roller Dia.- 10.20mm

Plate Thickness-
Inner- 2.20mm
Outer- 2.20mm

Tensile Strength- 8,800lbs. or 39.1kN

Wear Life Index- (Std. as 100)- 1 ,200

True Weight (100 Links)- 3.91lbs. or 1.77kg
