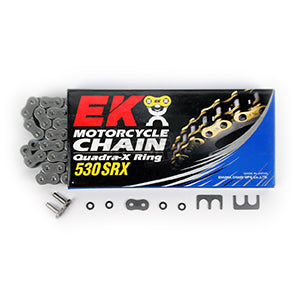

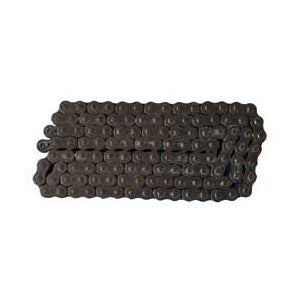

EK 530 SRX Steel X-Ring Chain

EK Chains

$113.00 USD

Share:

EK SRX series chains are an excellent value for any
street machine up to 650cc. They feature lightening holes, reduced friction, and Quadra-X Rings which increases chain life from 1 1/2 to 2 times longer than a standard O-Ring chain.

SRX 530 Also available in GOLD!


Specifications-

530 SRX

Pitch- 5/8in. or 15.875mm
Width- 3/8in. or 9.53mm
Roller Dia.- 10.20mm


Pin Size-
Dia.- 5.38mm
Length- 25.40mm

Plate Thickness-
Inner- 2.40mm
Outer- 2.40mm

Tensile Strength- 9,400lbs. or 41.8kN
Wear Life Index- (Std. as 100)- 1,200
True Weight- (100 Links)- 4.80lbs. or 2.17kg
