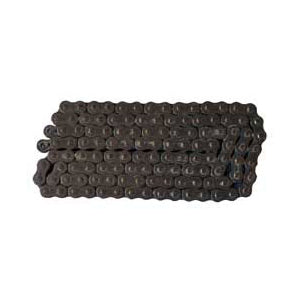

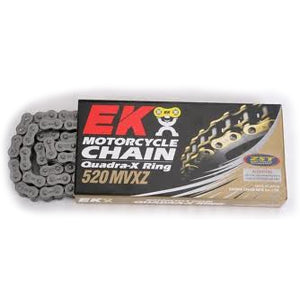

EK 520 MVXZ Steel X-Ring Chain
EK Chains
The MVXZ Quadra-X Ring chain is the ideal replacement for any street bike up to 1000cc.
It features lightening holes in the sideplates, large diameter pins, and friction-reducing Quadra-X Rings
that ensure high performance, and 1 1/2 to 2 times the increased wear life compared to a standard O-Ring chain.
EK's Quadra-X Ring design results in an innovative sealing technology that reduces friction and increases chain life.
Check out MVXZ color options. Available colors are: Gold, Black, Chrome, Red, Yellow, Orange,
Blue, Purple, Green, and Hot Pink.
Specifications-
520 MVXZ
Pitch- 5/8in or 15.875mm
Width- 1/4in. or 6.35mm
Roller Dia.- 10.20mm
Pin Size-
Dia.- 5.38mm
Length- 21.50mm
Plate Thickness-
Inner- 2.20
Outer- 2.20
Tensile Strength- 9,000lbs. or 40.0kN
Wear Life Index- (Std. as 100) 1,500
True Weight- (100 Links)- 3.99lbs. or 1.81kg
